Main Features:1. The optical system designed by our senior optical engineer not
only meet the definition of hardness testing requirements, but also
can observe the micro structure of the material, image is very
clear.
2. According to different visual habits of the operators, the
strength of the light source can be adjusted. To avoid the visual
fatigue for long time operation.
3. With Vickers hardness and Knoop hardness testing capabilities,
and testing range from HV0.2 to HV5. By measuring the indentation
diagonal length, the hardness will show on the screen directly, no
need to check hardness table.
4. Industrial digital screen can direct display hardness value,
conversion hardness, testing method, testing force, dwell time,
testing times and testing process;

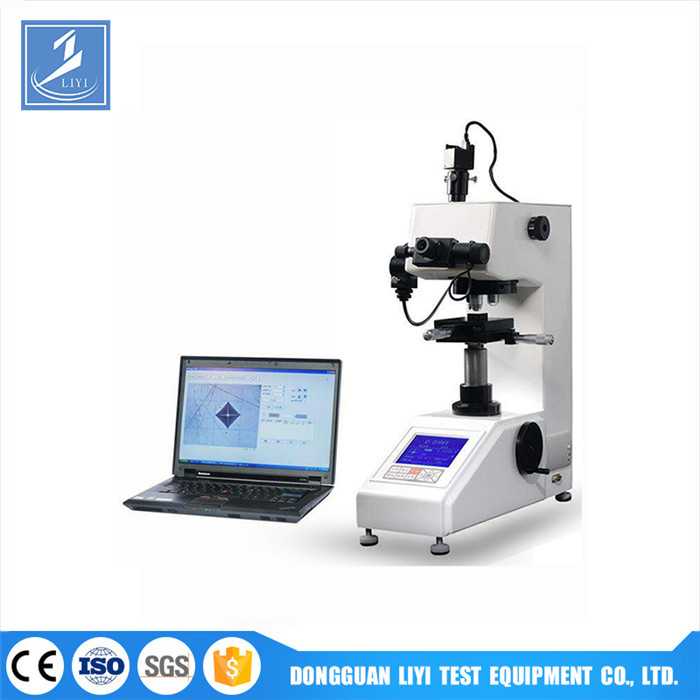

5. Reserved CCD camera optical path, support machine work with
computer and hardness measuring software system.
Main purpose and application:1. Steel, nonferrous metals, tinsel, cemented carbide, sheet metal,
metallographic structure.
2. Carburization, nitriding and decarburization layer, surface
hardening layer, galvanized coating, coating.
3. Glass, chip and ceramic material.
Specification:| Model | V-5A | V-5M |
| Turret | Automatic | Manual |
| Test force | 200g (1.96N), 500g (4.9N), 1000g (9.8N), 2000g (19.6N), 3000g
(29.4N), 5000g (49N) |
| Hardness scale | HV0.2, HV0.5, HV1, HV2, HV3, HV5 |
| Hardness conversion scale | HRA, HRB, HRC, HRD, HK, HBS, H15N, H30N, H45N, H15T, H30T, H45T |
| Loading speed | ≤50μm/sec |
| Min. Measuring Unit | 0.5μm |
| Indenter | Standard Rectangular pyramid diamond indenter (136º±0.5º) |
| Hardness Value Range | 5-3000HV, 8-4500HK |
| Hardness Value of Reading | Digital LCD Screen |
| Total Magnification | 100X (For Observation), 200X (For Measurement) |
| Loading Method | Automatically (Load, dwell and unload) |
| Dwell Time | 5-99s (each step is 1 second) |
| Maximum Height | 85mm |
| Throat depth | 120mm |
| Light Source | LED Cold light source |
| Power Supply | 220V + 5%, 50/60 Hz (110V is available) |
| X-Y Testing Table | Dim.: 100×100 mm, Max. Travel Range: 25×25mm,
Moving Resolution Ratio: 0.01mm |
| Instrument size and Net weight | 490×330×515mm 35kg |
| Executed Standard | GB/T4340, ASTM E384 & E92, EN-ISO 6507-2, JIS B-7734 |
| Standard Accessories | 1 piece:
10X micrometer eyepiece ; 10X and 20X objective lens; Vickers
indenter; Flat fixture; Gradienter; X-Y Testing Table; Power line;
Dust proof cover; Manual Book; Hardness Conversion Tables; Quality
certificate; Warranty Card; Accessory case
2 pieces: Standard block of hardness
4 pieces: horizontal adjusting screw |
| Optional Purchase Accessories | Image analysis software; Metallographic equipment; Knoop Indenter;
hardness block; 15X micrometer eyepiece |
