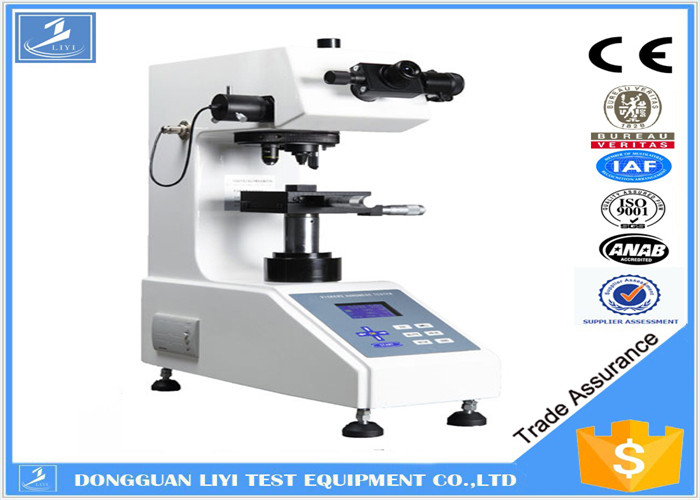

Digital Micro Vickers Hardness Test with Vickers Knoop Diamond
Indenter
1. We are Manufacturer, selling our product.
2. Give you the best price.
3.The Fastest delivery for urgent orders.
4. Guaranteed goods high accuracy and stability
5. Provide our customers 2 year after sales service.
Main Function:
This is a high-tech and new product combining the optics, mechanic
and electrics features. With a novel and pleasing appearance, the
internal structure is mainly made by stainless steel parts, has
better performance. It adopts a new type of automatic turret
mechanism, equipped with both Micro Vickers and Knoop indenters.
These two indenters adopt the independent alignment device which
ensures that Vickers and Knoop indentation are at the same center
position. It can directly shows the test mode, test force,
indentation length, dwell time, test numbers, conversion scale,
date and time on the large screen. As long as press the eyepiece
button after measuring the indentation length, it can automatically
get the hardness value and shows on the screen. With the up and
down limit alarm function, test results can be saved for checking
or be printed out by the built-in printer, and with RS232 interface
for connecting to the computer. It can use optional Knoop indenter
to measure Knoop hardness. And it can be equipped with LCD video
measuring device and CCD image automatic measuring system.
Application range:
Suitable for ferrous metal, non-ferrous metals, IC thin sections,
coatings, ply-metals; glass, ceramics, agate, precious stones, thin
plastic sections etc.; hardness testing such as that on the depth
and the trapezium of the carbonized layers and quench hardened
layers.
Technical Specification:| Model | DVK-1A-6 |
| Turret | Automatic |
| Test Force | gf | 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf |
| N | 0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N |
| Test Range | 1HV~2967HV |
| Test Mode | HV/HK |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Conversion Scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N,
HR45N, HR15T, HR30T, HR45T, HS, HBW |
| Data Output | Built-in Printer,RS232 Interface |
| Hardness Reading | LCD Display, Data can be saved |
| Objective | 10× (Observe),20× (Measure),40× (HV Measure), 40× (HK Measure) |
| Eyepiece | 10× |
| Total Magnification | 100× ,200× ,400× , 400× |
| Resolution | 0.03μm ,0.015μm |
| Dwell Time | 0~95s |
| Light Source | Halogen Lamp |
| X-Y Test Table | Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm |
| Max. Height of Specimen | 90mm |
| Throat | 120mm |
| Power Supply | AC220V,50Hz |
| Execute Standard | ISO 6507,ASTM E384,JIS Z2244,GB/T 4340.2 |
| Dimension | 495×305×550mm,Packing Dimension: 600×360×800mm |
| Weight | Net Weight: 35kg,Gross Weight: 44kg |
| Name | Qty | Name | Qty |
| Instrument Main Body | 1 set | 10× Digital Measuring Eyepiece | 1 pc |
| Diamond Micro Vickers Indenter | 1 pc | Diamond Knoop Indenter | 1 pc |
| 10×, 20×, 40×, 40× Objective | 4 pcs | Weights | 7 pcs |
| Power Cable | 1 pc | Cross Test Table | 1 pc |
| Thin Specimen Test Table | 1 pc | Flat Clamping Test Table | 1 pc |
| Filament Clamping Test Table | 1 pc | Level | 1 pc |
| Horizontal Regulating Screw | 4 pcs | Halogen Lamp 12V,15~20W | 1 pc |
| Fuse 1A | 2 pcs | Screw Driver | 1 pc |
| Inner Hexagon Spanner | 1 pc | Color Filter | 1 pc |
| Plastic Absorbing Plate | 1 pc | Hardness Block 400~500 HV0.2 | 1 pc |
| Hardness Block 700~800 HV1 | 1 pc | Hardness Block 700~800 HK1 | 1 pc |
| Anti-dust Cover | 1 pc | Usage Instruction Manual | 1copy
|
