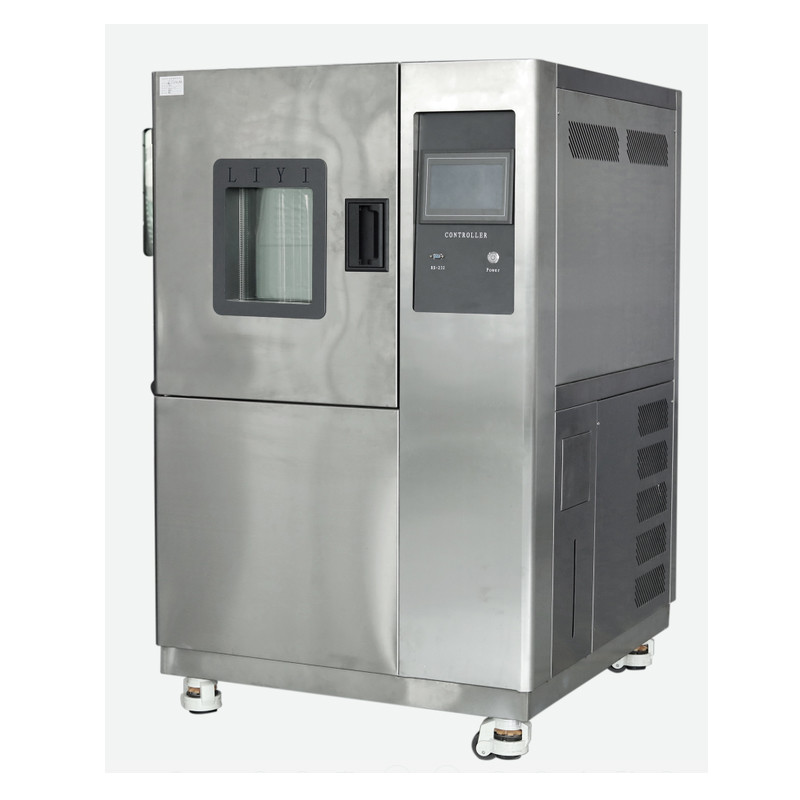

Stainless Steel Temperature Humidity Test Chamber/ High Low
Temperature Control Cabinet
It can simulate different environment condition. It's appropria-te
for testing material performance, such as resist heat, resist
dry,resist humidity and resist cold. That can define perform-ance
of material.
Standards:
GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566
Characteristics:
1. Use the high precision microcomputer touch temperature and
humidity controller with high stability of platinum resistan-ce to
temperature and wind speed in the circulatory system of temperature
and humidity test.
2. Control temperature&humidity well-distributed, precisely and
steady.
3. Completely independent system separate for testing in high
temperature, low temperature and constant temperature & humidity
environment.
Mode | LY-280 | LY-2150 | LY-2225 | LY-2408 | LY-2800 |
Inner Size W×H×D(cm) | 40×50×40 | 50×60×50 | 60×85×80 | 60×85×80 | 100×100×80 |
Outside Size W×H×D(cm) | 93×155×95 | 100×148×106 | 117×166×91 | 140×176×101 | 170×186×111 |
Volume (V) | 80 L | 150L | 225L | 408L | 800L |
Temp and Hum Range | A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C RH20%-98% |
Function | Fluctuation | ±0.5°C ±2.5%RH |
Deviation | ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH) |
Controller Analytical Accuracy | ±0.3°C ±2.5%RH |
Material | Inner Wall | #SUS 304 Stainless steel |
Outer Skin | #SUS 304 Stainless steel |
Heat Preservation | High temperature resistant, high chlorine acid b vinegar foam insulation materials |
Wind Cycling Way | Centrifugal fan-broadband type forced air circulation |
Refrigeration Way | Single stage compression refrigeration |
Refrigerater | French Tecumseh |
Refrigerants | R4O4A USA Dupont environmental protection refrigerant(R23+R404) |
Condensing Way | Air-cooled or water-cooled |
Heater | Nickel chrome heating wire heater |
Humidifier | Semi-closed steam and wet |
Water Suplying Way | Automatic cycling water supply |
Standard Accessories | 1 Observe window(double-deck cavity toughened glass), 1 50mm test hole in the left, 1 PL inner chamber lamp, 2 clapboards, 1 bag of wet and dry bulb, 3 fuses, 1 power line. |
Safety device | Non- fuse-switch(compressor overload, refrigerant high low voltage, over-humidity and temperature protection, Protection switch,fuse stoppage warning system |

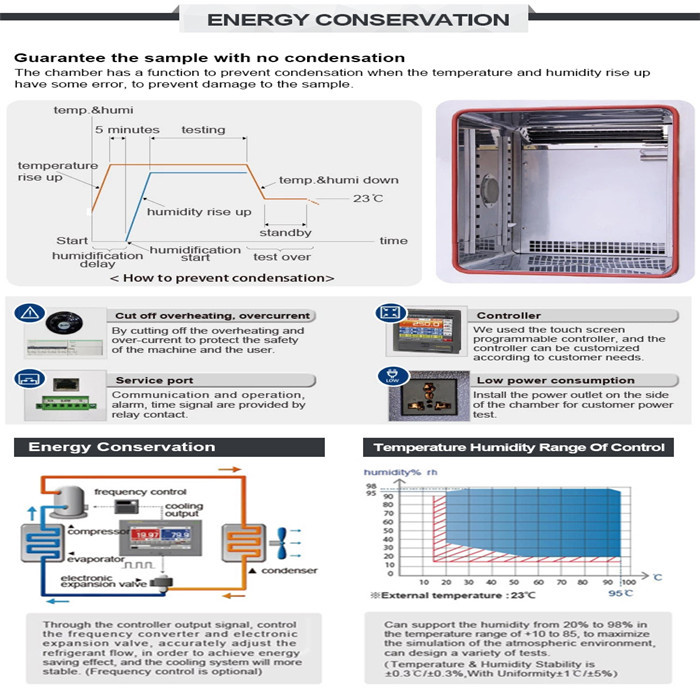

Product Effects
Company Information
LIYI INTERNATIONAL is a professional manufacturer of various kinds
of testing equipments over 12 years. LIYI products are widely used
in paper products, packaging, ink printing, adhesive tapes, bags,
footwear, leather products, environment, toys, baby products,
hardware, electronic products, plastic products, rubber products
and other industries, and applicable to all scientific research
units, quality inspection institutions and academic fields.
Our Services
If you face any problems in future during testing process we
promise we will give you a reply within 48 hours and solution
provide within 3 working days. We can offer operation video and
English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change
the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem
controller freely, even it's not from our factory. What you need to
do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract,
which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air
bubble film before put them into the wooden case, which not only
has good shock absorption, impact resistance, heat sealing and also
has the advantages of nontoxic, odorless, moisture corrosion, good
transparency etc.
