    Tensile Strength Measuring Instrument Pulling Force Testing Equipment

    Ask Lasest Price
    Brand Name : Liyi
    Model Number : LY-1065/LY-1068
    Certification : ISO, CE
    Price : $2,890.00 - $4,350.00/ Set
    Payment Terms : T/T
    Supply Ability : 100 Set/Sets per Month
    Delivery Time : 1 sets needs 15 days,>1 sets to be negotiated
    • Product Details
    • Company Profile

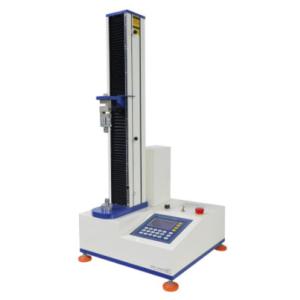

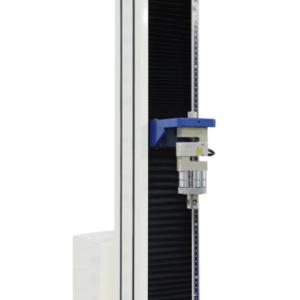

    Tensile Strength Measuring Instrument Pulling Force Testing Equipment

    Tensile Strength Measuring Instrument Pulling Force Testing Equipment Tension Machine

    Product information

    This machine also known as a materials testing machine , it is applicable to testing tensile stress, compressive stress, shearing force, peeling force, and elongation of materials, components, and finished product for metal, plastic, rubber, textile, synthetic chemicals, wire and cable, leather, ect.

    Specifications

    ModelLY-1065LY-1068
    Range of speed0.1~500mm/min50~500 mm/min
    MotorPanasonic sevor motorAC motor
    Resolution1/250,0001/150,000
    Capacity choice1, 2, 5,10, 20, 50,100, 200, 500 kg optional
    Stroke850 mm (can be customized)
    Accuracy± 0.5 %
    Force relative error± 0.5 %
    Displacement relative error± 0.5 %
    Test speed relative error± 0.5 %
    Effective testing space120 mm
    AccessoriesComputer, printer, system operation manual
    Optional accessoriesStretcher, air clamp
    Operation methodWindows operation
    Weight70 kg
    Dimension(W * D * H) 58 * 58 * 145 cm
    Power1 PH, AC 220 V, 50/60 Hz
    Stroke protectionMachinery, computer double protection, prevent over preset
    Force protectionsystem setting
    Emergency stop deviceHandling emergencies
