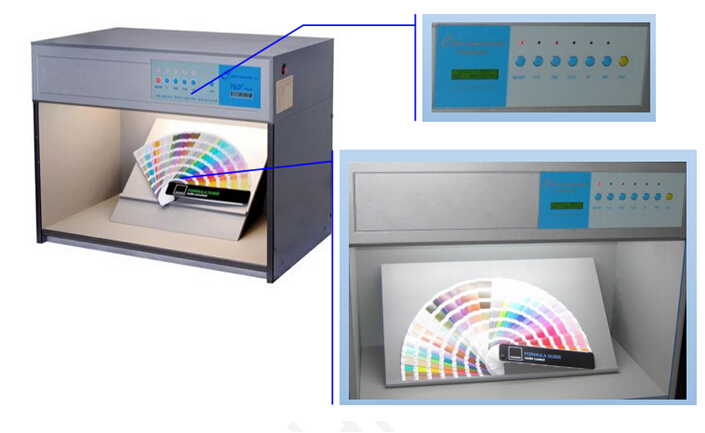

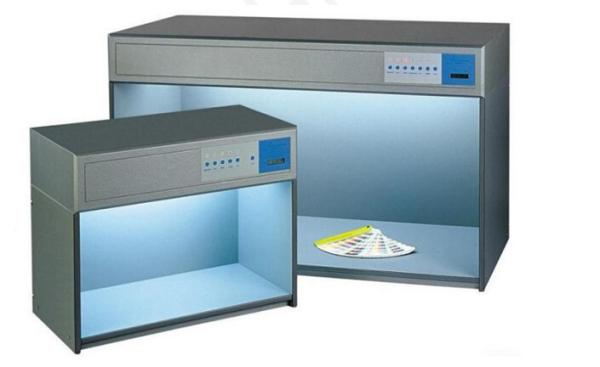

Multi-color Light Box Paper Testing Equipment 6 Light Sources Paper
Product Introduction:
Quickly detail :
information: Product name | Model No. | D65 | TL84 | CWF | F | UV | U30 | Voltage |
Color assessment cabinet | CAC-600-6 Light sources (220V) | 2 | 2 | 2 | 4 | 1 | 2 | 220V/50Hz |
Uses:
Used in textile, printing and dyeing industry, materials, visual
assessment of color fastness, color proofing, color identification,
and fluorescent substances, so that samples, production, quality
inspection, and acceptance in the same light source under the
standard, accurate proofing products color deviation, to ensure the
quality of goods to meet the requirements of the color. To improve
product quality and market competitiveness.
Test Standards:
FZ/T01047;BS950;DIN6173;ASTM D1729
Features:
Widely used in textiles, toys, printing and dyeing, plastic, paint,
ink, printing, paints, chemicals, ceramics, footwear, leather,
metal, food, cosmetics and other multi-line multi-industry, color
management.
Specifications:
Light source:
D65 --- International-standard Artificial Daylight
Color temperature:6500K Power:18W
TL84 --- Applicable to stores in Europe, Japan and China
Color temperature:4000K Power:18W
CWF (Cool White Fluorescent)
Color temperature:4200K Power:20W
F-light ---- Comparison referential light source, Applicable to
family/hotel
Color temperature:2700K Power:40W
UV ---- Ultraviolet light source
Wavelength:365nm Power:20W
U30 (Warm White Fluorescent)
Color temperature:3000K Power:18W
Color assessment cabinet Product information:
information: Product name | Model No. | D65 | TL84 | CWF | F | UV | U30 | Voltage |
Color assessment cabinet | CAC-600-6 Light sources (220V) | 2 | 2 | 2 | 4 | 1 | 2 | 220V/50Hz |
Software Functions:
1. Computer Control 1000KG Carton Box Compression Paper Test
Instruments use windows working platform, set all parameter with
dialog forms and operate easy;
2. Computer Control 1000KG Carton Box Compression Paper Test
Instruments use a single screen operation, do not need to change
the screen;
3. Have simplified Chinese, traditional Chinese and English three
languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast
ways;
7. Computer Control 1000KG Carton Box Compression Paper Test
Instruments With many units of measurement, the metric system and
british system can switch;
8. Computer Control 1000KG Carton Box Compression Paper Test
Instruments Have automatic calibration function;
9. Computer Control 1000KG Carton Box Compression Paper Test
Instruments Have user-defined test method function;
10. Computer Control 1000KG Carton Box Compression Paper Test
Instruments Have test data arithmetic analysis function;
11. Computer Control 1000KG Carton Box Compression Paper Test
Instruments have the function of automatic magnification, to
achieve the most appropriate size of graphics;
Pictures:
