    TBR Tire Plunger Tester Durable For Full Steel Radial Tire

    Ask Lasest Price
    Brand Name : LIYI
    Model Number : LY-TR18
    Price : US$7999-50000
    Payment Terms : D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20set per year
    Delivery Time : about 30 working days
    • Product Details
    • Company Profile

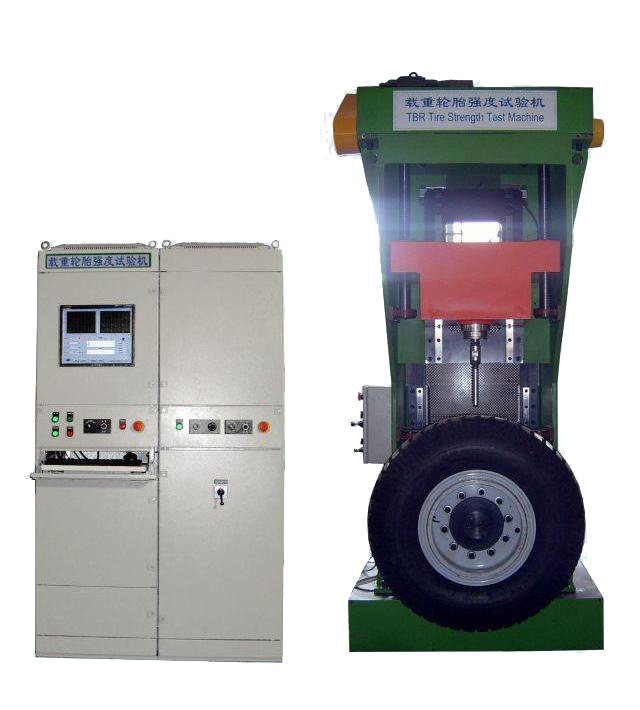

    TBR Tire Plunger Tester Durable For Full Steel Radial Tire


    TBR Tire Plunger Tester Durable For Full Steel Radial Tire


    Machine function

    · Check TB tire strength and anti-destructive capability

    · Check the static loaded radius

    · Check the loaded tire pattern

    · Design standard

    · ISO-10454 Truck and bus tyres -- Verifying tyre capabilities -- Laboratory test methods


    Technical specification

    Measuring scope

    Measuring Item

    Full steel radial tire

    Tire outer diameter

    Φ600~Φ1400

    Tire section width

    170~480 mm

    Rim min nominal diameter

    15

    Rim max nominal diameter

    24.5

    Rim nominal width

    140~356 mm

    Technical parameters

    Loading method

    Mechanical loading

    Max trust force of main loading axle

    100 kN

    Max stroke of main axle

    500 mm

    carriage stroke of tire main axle

    500 mm

    Loading speed

    50±2.5mm/min

    Quick return speed of loading main axle

    500 mm/min

    Carriage speed of tire main axle

    50±2.5 mm/min

    Quick return speed of tire main axle carriage

    500 mm/min

    Power requirement

    Power supply

    380VAC, voltage fluctuating within ±10%, 3 phases, 5 wires
