LY-605 Electronic UV Accelerated Aging Testing Chamber Manufacturer
This machine can provide the simulative heat of the sun and
ultraviolet radiation environment of space.It is used for observing
the anti-yellowing degree of the sample after a period of time
effected by the ultraviolet ray and the temperature.
Grey stain can be used for reference standard, to judge it’s
yellowing degree.Products will change their color when radiated by
the sun or influenced by the environment of the container. LY-605A
leather/paper yellowing resistance tester use the UV lamp 300W, so
that the experiment can be finished in a short time.The machine can
also be used as an aging tester or an oven, presenting a
multi-function machine.
Standards:
GB/T8830, ASTM D1148, ISO8580
Specification:
| Model | LY-605 |
| Temperature range | Normal+5°C~200°C |
| Internal size W×H×D(cm) | 50×60×50 |
| External size W×H×D(cm) | 70×128×85 |
| Accuracy of temperature | ±0.3°C |
| Distribution of temperature | ±0.5°C |
| Temperature controller | Electronic LED digital display, automatic play several micro PID
temperature controllers |
| Timer | 0~9999min |
| Test rack | Speed of 1~10rpm, adjustable, single-deck rotating stand |
| Internal material | SUS mirror finished stainless steel |
| External material | Special steel, galvanized antirust processing, the senior resin
coating with the lacquer that bake |
| Observation window | Whole sealing |
| Safety device | Over-temperature power-off protection, Over-temperature protection,
Over-time protection |
| Standard accessories | 2 groups of unadjustable stainless steel layer |
| Power | 220V,50HZ |
Techincal Parameter:
1.Accord with the standard of ISO,ASTM,
DIN,JIS,SAE,BS,ANSI,GM,U.S.GOVT.
2.The condensing device simulated the outdoor moisture influence, can
achieve 100% humidity
3.A electronic irradiance control system
4.Use the blackboard temperature sensor measuring temperature
accurate, which can repeated the test results.
5.Humidity, condensation, water spray circulating consecutive
testing.
6.Intensity of illumination has CR-10 calibrating pegging and
automatic calibration procedures (American Q-the Lab patent
technology) .
7.Sample quantity: 75mm×300mm 24pieces, 75mm×150mm 48 pieces.
Our Service:
If you face any problems in future during testing process we
promise we will give you a reply within 48 hours and solution
provide within 3 working days. We can offer operation video and
English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change
the-voltage from 110V to 380V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem
controller freely, even it's not from our factory. What you need to
do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract,
which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air
bubble film before put them into the wooden case, which not only
has good shock absorption, impact resistance, heat sealing and also
has the advantages of nontoxic, odorless, moisture corrosion, good
transparency etc.

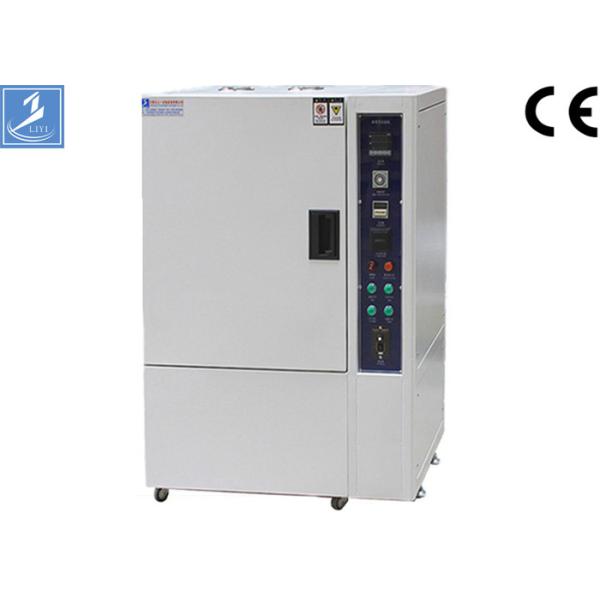

Product Picture:
