Brief Introduction:
It can provide reliable aging test data to make the exact
prediction of products’ weathering fastness(ageing resistance).,
which is conducive to sift and optimize the formula. It is used in
many industries, such as: paint, inks, resin, plastics, printing
and packaging, adhesives, auto and motorcycle industry, cosmetics,
metal, electronic, electroplating, medicine,etc.
Uses:

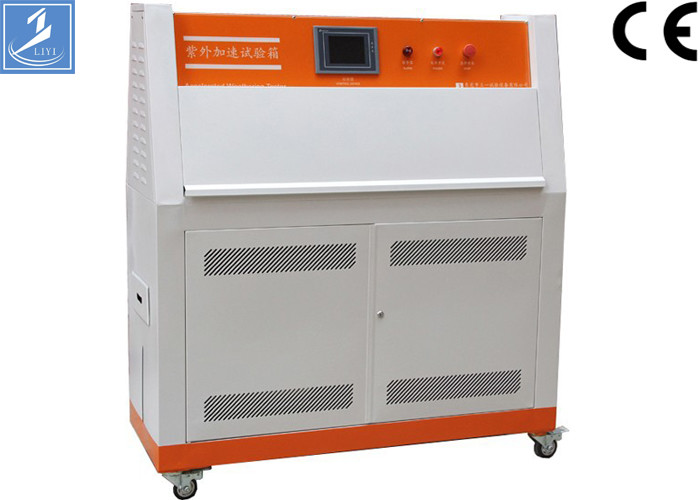

This machine is the most widely used UV Weathering tester in the
world,there are thousands of ultraviolet aging testers coming into
use. It has become the standard of the UV test, fit standards of
ISO,ASTM,DIN,JIS,SAE,BS,ANSI,GM,U.S.GOVT,ect. It can simulate the
damage of sunshine, rain, dew to the material quickly and exactly.
Damage types including bleaching, discoloration, loss of light,
powder, crack, turbidity, bubble-based, embrittlement, strength
decline and oxidation need to be engenderd in months or years but
can engender in a few days or weeks.
Characteristics:
1.The ultraviolet aging tester is designed according to uses’
operation , it’s easy to operate, safe and reliable.
2.The thickness of specimen installation is adjustable and the
specimen installation is fast and convenient.
3. Programmable UV Weathering Test Chamber door rotating up does
not interfere with the operation and the tester takes a very small
space only.
4.It’s unique condensating system can be contented by tap water.
5.The heater is under the container rather than in the water, which
is long life, easy to mainten.
6.The water level controller is outside the box, easy to monitor.
7. Programmable UV Weathering Test Chamber has truckles, convenient
to move.
8.Computer programming is convenient, automaticly alarming when
incorrect operated or faulted.
9. Programmable UV Weathering Test Chamber has irradiance
calibrator to extend the life of the lamp tube(more than 1600h).
10. Programmable UV Weathering Test Chamber has Chinese and English
instruction book, convenient to consult.
11.Divided into three types: common, light irradiance controlling,
spraying
Techincal Parameter:
1.Accord with the standard of ISO,ASTM,
DIN,JIS,SAE,BS,ANSI,GM,U.S.GOVT.
2.The condensing device simulated the outdoor moisture influence,
can achieve 100% humidity
3.A electronic irradiance control system
4.Use the blackboard temperature sensor measuring temperature
accurate, which can repeated the test results.
5.Humidity, condensation, water spray circulating consecutive
testing.
6.Intensity of illumination has CR-10 calibrating pegging and
automatic calibration procedures (American Q-the Lab patent
technology) .
7.Sample quantity: 75mm×300mm 24pieces, 75mm×150mm 48 pieces.
Specifications:
| Mode | LY-ZW |
| Inside Dimensions (CM) | 45×117×50 |
| Outer Dimensions (CM) | 70×135×145 |
| Rate of Work | 4.0(KW) |
Performance Index
| Temperature Range | RT+10°C~70°C |
| Himidity Range | ≥95%R.H |
| Distance Between Lamps | 35mm |
Distance Between Samples and Lamps | 50mm |
| Specimen Number | L300mm×W75mm, about 20pics |
| Ultraviolet Wavelength | 290nm~400nm UV-340,UV-313,UV-351 (state clearly in your order ) |
| Rate of the Lamp | 40W |
Controlling System | Controller | South Korean imported touch screen programmable controller |
| Illumination Heating System | all independent system, nickel chrome alloy electrical heating type heater |
Condensation Humidifying System | stainless steel shallow evaporative humidifier |
| Blackboard Temperature | double metal blackboard mometer |
| Water Supplying System | Humidification water supplying automatic control |
| Exposure Way | moisture condensation way exposure, light radiation exposure |
| Safety Device | leakage, short circuit, super temperature, water shortage and over current protection |
