    225L Environmental Constant Temperature Humidity Chambers With Stainless Steel Plate

    Ask Lasest Price
    Brand Name : LIYI
    Model Number : LY-2150
    Certification : CE
    Price : USD 5000-10000 / 1 set
    Payment Terms : T/T, Western Union, L/C, , D/A, D/P, MoneyGram
    Supply Ability : 100 sets per one month
    Delivery Time : 10-20 working days
    • Product Details
    • Company Profile

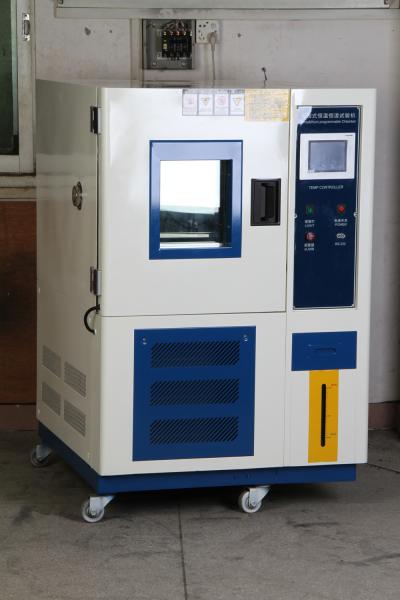

    225L Environmental Constant Temperature Humidity Chambers With Stainless Steel Plate

    225L Environmental Constant Temperature Humidity Chambers With Stainless Steel Plate


    Introduction


    Temperature Humidity Chambers can simulate both temperature and humidity. Controlled humidity from 20%RH to 98%RH can be maintained within the dry-bulb temperature range of -70°C to +150°C, For lower dewpoint conditions (low RH or relative humidity at low dry-bulb temperatures), you will need dry air purge or GN2 (gaseous nitrogen) purge. See the humidity range chart on the specification page of each temperature-humidity chamber for humidity range limits.


    Inspect standard:JJF-1101,GB/T 10592,GB/T 10586.


    Testing standards:YD/T 2061,HB 7122.3,6783.7,GJB 5382.7,GJB 150,GB/T 2423,5170.2,5170.5,5179.2, ASTM E512,NF EN 60068-2-38,CNS 12565,12566,KS C0227,KS C022

    Specification:


    MaterialInner materialSUS 304# steel plate
    Outside materialSUS 304# steel plate(surface disposing)
    Thermal insulation material

    Thermostability high density chlorine formic acid foam insulator

    material

    System wind pathround-robin modecentrifugal fan-broadband enforce circulation
    Refrigeration waySingle stage compression refrigeration
    Refrigeratorwhole sealing piston France Taikang brand Compressor
    Freezing fluid

    R4O4A or USA Dupont environmental

    protection refrigerant(R23+R404)

    Condensation wayforced air cooling or water-cooling
    HeaterNichrome heating wire heating
    HumidifierSemi-enclosed steam humidification
    Water-provide wayfull-automatic periodical feeding
    Standard configuration

    1 Observe window(double-deck cavity toughened glass),1

    50mm test hole

    in the left,1 PL inner chamber lamp,2clapboards, 1

    bag of wet and dry bulb,

    3 fuses, 1 power line.

    Safety device

    Non- fuse-switch(compressor overload, refrigerant high low voltage,

    over-humidity and temperature protection,Protection

    switch,fuse stoppage

    warning system

    Power1φ 220V AC±10% 50/60Hz 3φ 380V AC±10% 50/60Hz
