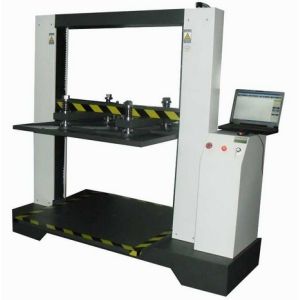

Computer Control 220V 550KG Precision Box Compression Test
Equipment
Box Compression is used for measuring the pressure strength of
cartons,containers,etc, for inspecting the pressure-resistance and
strike- endurance of packing materials during transportation or
carry.
Test Standards:
TAPPI-T804,JIS-Z0212,ISO2872,NF H13-001,CNS 2236/3511
Specification:
| Capacity | 10000kg |
| Resolution | 1/100,000 |
| Correctness of force | Better than ±1% |
| Correctness of distortion reading | Better than ±1% |
| Effectual range of testing force | 1~100%F.S |
| Unit | kgf,gf ,N,kN,lbf |
| Test space | 1000×1000mm (can customize) |
| Space between platen | 1000mm (can customize) |
| Drive System | servo system,precision ball screw, DC variable speed drive system |
| Test speed range | 10~200mm/min | 0.1~500mm/min |
| Return speed | 500mm/min |
| Power | 1φ,220V±10% 50Hz |
| Stop mode | Set limits of security, urgent stop key, programable force and
elongation setting, specimen damage sensing |
Safety Device:
Stroke protection,Force and Elongation protection,Emergency stop
device,Sensing device when specimen is destroyed.
Features:
1.Adopting windows platform, all the parameter settings can be
processed in the dialog box, and it operates easily.
2.Computer Control 1000KG Carton Box Compression Paper Test
Instruments use a single-screen operation, do not need to switch
the screen.
3.With three languges in simplified Chinese, traditional Chinese
and English, the software interface can be switched easily.
4.Choosing translational, overlapping mode at the same time to make
sure a number of curve date comparison.
5.With a variety of measurement units, measure in
imperial&metric are switchable.
6.With automatic magnification function, in order to achieve the
most appropriate size of the graphics.
7.With an advanced design of machine structure which have strong
rigidness and small volume but light weight.
Software Functions:
1. Computer Control 1000KG Carton Box Compression Paper Test
Instruments use windows working platform, set all parameter with
dialog forms and operate easy;
2. Computer Control 1000KG Carton Box Compression Paper Test
Instruments use a single screen operation, do not need to change
the screen;
3. Have simplified Chinese, traditional Chinese and English three
languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast
ways;
7. Computer Control 1000KG Carton Box Compression Paper Test
Instruments With many units of measurement, the metric system and
british system can switch;
8. Computer Control 1000KG Carton Box Compression Paper Test
Instruments Have automatic calibration function;
9. Computer Control 1000KG Carton Box Compression Paper Test
Instruments Have user-defined test method function;
10. Computer Control 1000KG Carton Box Compression Paper Test
Instruments Have test data arithmetic analysis function;
11. Computer Control 1000KG Carton Box Compression Paper Test
Instruments have the function of automatic magnification, to
achieve the most appropriate size of graphics;
